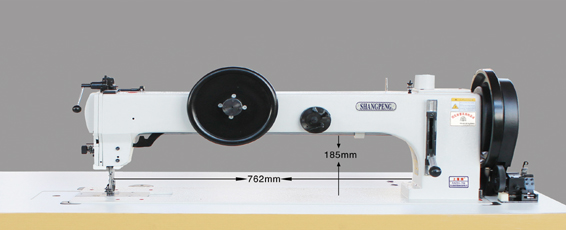

综合送料缝纫机 > GA204-762 长臂综合送料厚料缝纫机



特点:当加工技术性织物和内装潢件时,由于缝料的体积大且厚,因此对缝纫设备的稳定性和坚实的结构有更高的要求。204-762型长臂综合送料厚料机适用于难以车缝的工序。该机型强劲稳重的设计和762mm超大的臂下空间,为完成大面积缝件的高质量的穿越缝操作提供理想的条件。
Characteristics:When manufacturing technical textiles and up-holstery,the sewing of heavyweight materials,or those with a large area or volume,places the highest demands on the performance and sturdiness of the equipment used. The 204-762 series is specially designed for difficult sewing operations. Their sturdy design and the large clearance of 762 mm also offer ideal conditions for high-quality single-needle or twin-needle throughstitching operations on large-area,bulky workpieces.
性能:无忧的面料系统:有效且强大的三同步送布系统,超大的交替压脚冲程和压脚提升高度。理想的线迹构成和紧密不变线迹,即使是极粗的缝线和极厚的面料也能达到满意效果。特大半回转大型摆梭和特大容量的梭芯使缝纫循环周期增长,明显减少更换梭芯次数,即使是使用极粗的缝线由于机头下面有大面积的工作空间,方便处理大幅宽的物料。
Characteristics: Trouble-free material feed:efficient and powerful triple feed,high top feed stroke and high clearance under the alternating sewing feet Excellent stitch pattern and constantly tight stitches,even when processing thick threads and heavy-weight material Long sewing cycles without bobbin changes due to oversize vertical hook with high bob- bin capacity,even in case of thick threads Unhindered handling of large-area,bulky workpieces owing to the large clearance under the sewing head.
主要技术参数Main Parameters:
